Fruit & Juice Press Filter Screen
- Family: Food Machinery Mesh & Screens
- Standard: FDA 21 CFR / EU 1935/2004 food contact
Perforated Metal (Punching)
Holes and slots punched through sheet and plate in round, slotted and hexagonal patterns. 40 products in the catalog are made with this process.
How it is made
Sheet or coil is fed through a multi-pin press that punches a row of holes with every stroke, building the pattern across the sheet. Slots, squares and hexagons use shaped punches. Sheets are then levelled, cut, rolled into drums or formed.
What the process can do
Holes from about 0.5 mm (in thin sheet) up to 100 mm; thickness 0.3–20 mm; open area roughly 5–60 %; steel, stainless, aluminum, copper and brass.
Best for
Strong, flat screening and support parts — drum screens, grilles, filter cores, press screens and trommel panels.
Limits
Holes are generally not smaller than the sheet thickness, and very fine patterns are slow and costly to punch.
Design & ordering tips
State hole size, pitch, pattern (60° staggered or straight), margins and which face may carry the punch burr.
Products made by perforated metal
Vegetable Washer Perforated Drum Screen
- Family: Food Machinery Mesh & Screens
- Standard: FDA 21 CFR / EU 1935/2004 food contact
Pulper Finisher Screen
- Family: Food Machinery Mesh & Screens
- Standard: FDA 21 CFR / EU 1935/2004 food contact
Rice Polisher & Huller Sieve Screen
- Family: Food Machinery Mesh & Screens
- Standard: Rice mill OEM drawing
Anti-Blinding Ball Tray & Support Deck
- Family: Process Industry Screens
- Standard: Sifter OEM frames
Trommel Screen Perforated Panel
- Family: Process Industry Screens
- Standard: Trommel OEM drawing
Marine Raw-Water Sea Strainer Basket
- Family: Filter Elements
- Standard: ABYC H-27 / ISO 9093
Filter Bag Support Basket
- Family: Filter Elements
- Standard: Size #1 / #2 bag housings
Filter Cartridge Support Core
- Family: Filter Elements
- Standard: Custom to cartridge design
Espresso Machine Group Head Shower Screen
- Family: Kitchen & Appliance Filters
- Standard: FDA 21 CFR / EU 1935/2004 food contact
Moka Pot Filter Plate & Funnel
- Family: Kitchen & Appliance Filters
- Standard: FDA 21 CFR / EU 1935/2004 food contact
Vacuum Cleaner Cyclone Metal Mesh Filter
- Family: Kitchen & Appliance Filters
- Standard: IEC 60312-1

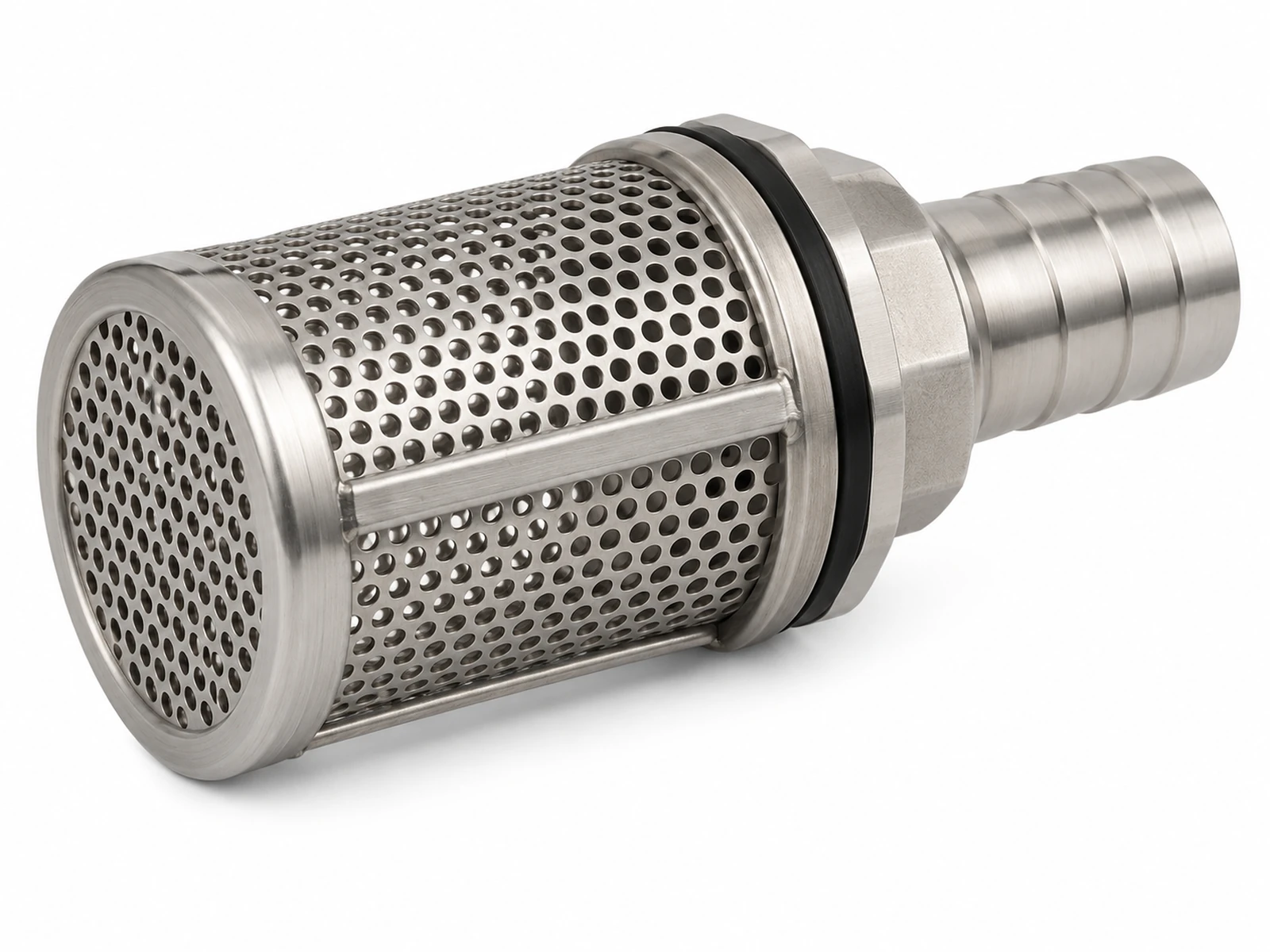

Pump Foot Valve & Suction Strainer
- Family: Filter Elements
- Standard: ASME B1.20.1 thread sizes
Basket Strainer Replacement Basket
- Family: Filter Elements
- Standard: ASME B16.5 strainer bodies
ISO 3310-2 Perforated Plate Test Sieve
- Family: Laboratory & Medical Mesh
- Standard: ISO 3310-2
Gutter Guard Micro-Mesh
- Family: Home, HVAC & Safety Mesh
- Standard: ASTM E108 Class A roof assemblies
Pool Skimmer & Pump Strainer Basket
- Family: Home, HVAC & Safety Mesh
- Standard: NSF/ANSI 50
Microwave Oven Door Shield Screen
- Family: Kitchen & Appliance Filters
- Standard: IEC 60335-2-25 / 21 CFR 1030.10
Speaker Grille Metal Mesh Sheet
- Family: Acoustic & Electronics Mesh
- Standard: DIN 24041 pattern
Microphone Pop Filter Metal Mesh Screen
- Family: Acoustic & Electronics Mesh
- Standard: Studio accessory
Air Fryer Basket Mesh Insert
- Family: Kitchen & Appliance Filters
- Standard: FDA 21 CFR / EU 1935/2004 food contact
Coffee Roaster Drum & Chaff Screen
- Family: Kitchen & Appliance Filters
- Standard: NSF/ANSI 4 equipment

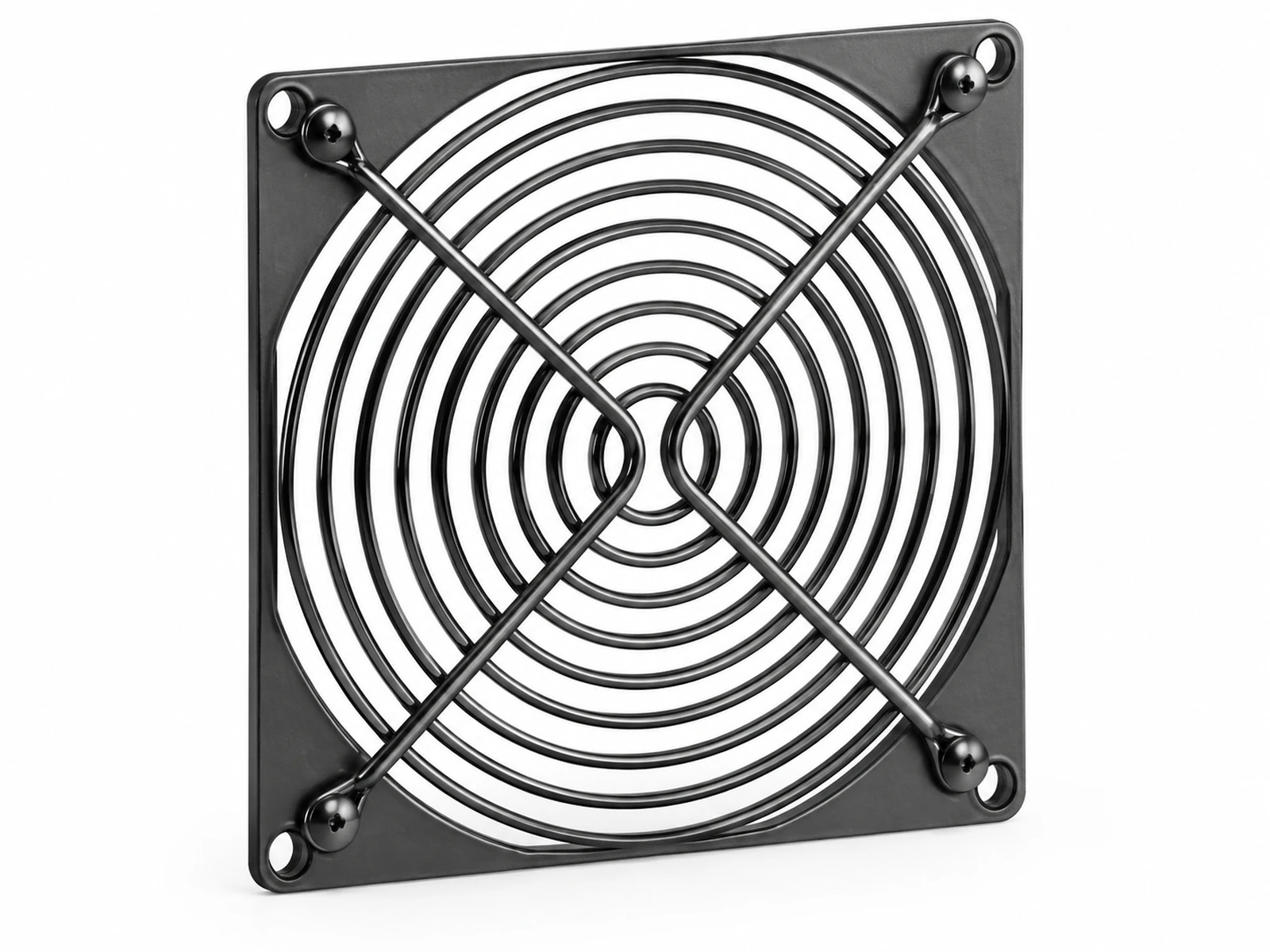

Fan Guard & Finger Grille
- Family: Acoustic & Electronics Mesh
- Standard: IEC 60950 / IEC 62368-1 finger probe

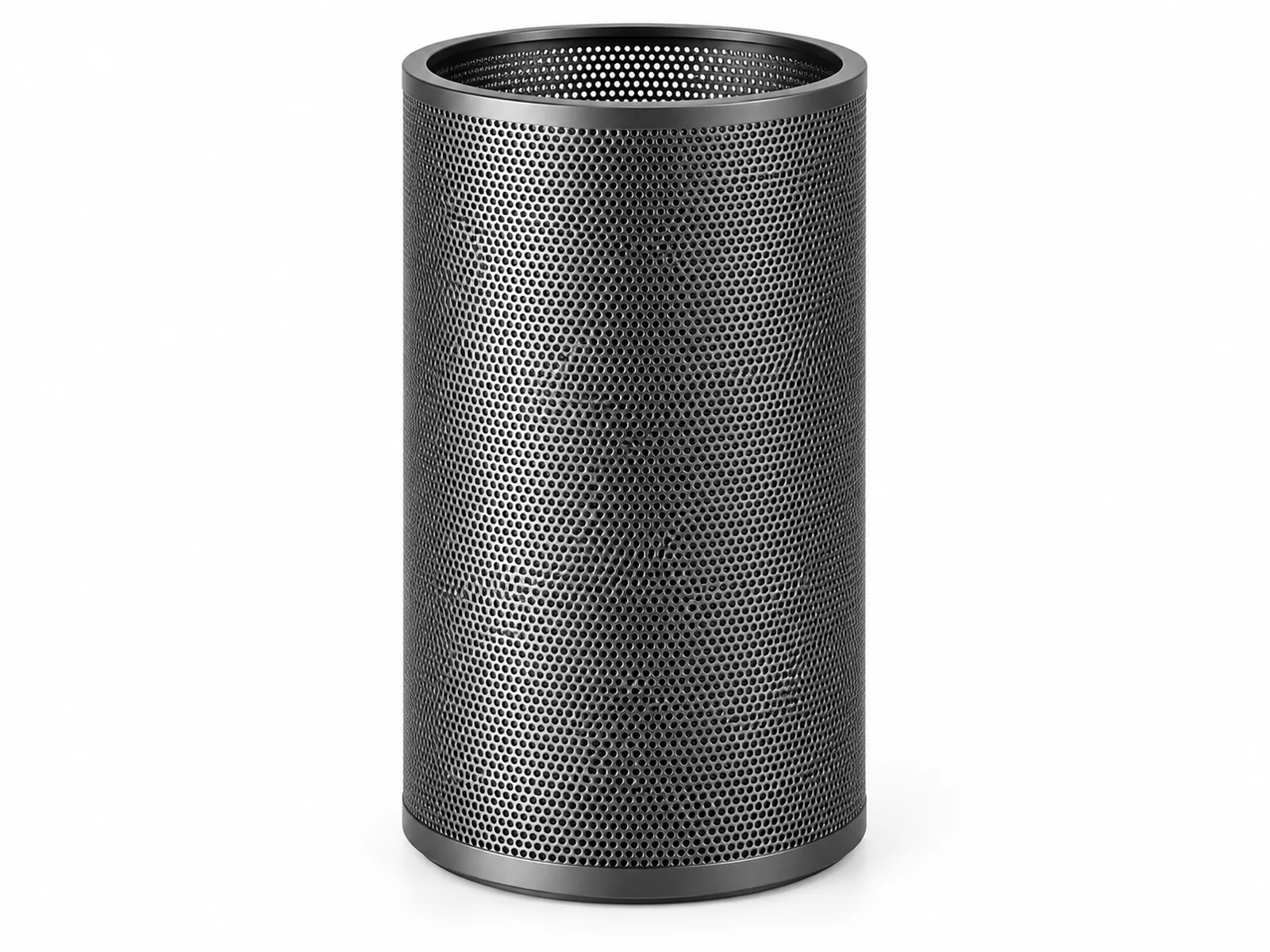

Smart Speaker Wrap-Around Metal Grille
- Family: Acoustic & Electronics Mesh
- Standard: DIN 24041 pattern
Other manufacturing processes
Woven Wire Mesh (Weaving)
96 products
Wire Crimping & Heavy Weaving
8 products
Welded Wire Mesh & Wire Forming
14 products
Expanded Metal (Slit & Stretch)
11 products
Sintered Media (Diffusion Bonding)
19 products
Calendering & Precision Flattening
21 products
Knitted Wire Mesh
4 products
Wedge Wire (Profile Wire Welding)
6 products
Photo-Chemical Etching
25 products
Laser Drilling & Cutting
4 products
Electroforming
5 products
Deep Drawing, Stamping & Forming
44 products
Pleating
3 products
Surface Finishing & Coating
31 products
Filter Fabrication & Assembly
86 productsHave a drawing? Tell us the process you need
Send the part drawing and the quantity; we will confirm the best process and quote within one business day.
