Soymilk Maker & Blender Filter Cup — FDA 21 CFR / EU 1935/2004 food contact

Soymilk Maker & Blender Filter Cup for holding soaked beans or nuts around the grinding blade of a soymilk maker so milk passes and okara stays inside. 4 sizes listed, with technical drawing and quotation.

A stainless steel fine-mesh soymilk maker filter cup attached to a motor head with grinding blade, soybeans
Soymilk Maker & Blender Filter Cup (FDA 21 CFR / EU 1935/2004 food contact) — Juicer & Blender Filters

Technical Drawing

Customize the parameters below — every spec field is editable, and the drawing redraws to match the values you choose. Changing the size will snap the other fields to that size's standard values; you can then override any individual value.

Sends the selected values to the quote form below.

Request a Quotation for Soymilk Maker & Blender Filter Cup

Tell us the specification (mesh count / micron / dimensions), material and quantity you need for Soymilk Maker & Blender Filter Cup (FDA 21 CFR / EU 1935/2004 food contact) and our team will respond within one business day. Click "Request this configuration" on the drawing above to send the parameters you just chose straight into this form.

Request a Quotation

Specification
Business Information

Dimensions & Specifications (FDA 21 CFR / EU 1935/2004 food contact)

Every row below is a starting point for the customizer above — pick any specification row and the drawing will redraw to it.

SizeOuter diameter (mm)Length (mm)Micron rating (u00b5m)MeshMount
1.0 L6295100150-Mesh SS304Bayonet
1.2 L70110100150-Mesh SS304Screw thread
1.5 L78125125120-Mesh SS304Bayonet
Nut-milk bag frame9016074200-Mesh SS316Free-standing

Soymilk Maker & Blender Filter Cup (FDA 21 CFR / EU 1935/2004 food contact) is used for holding soaked beans or nuts around the grinding blade of a soymilk maker so milk passes and okara stays inside.

Made by: Woven Wire Mesh (Weaving) · Deep Drawing, Stamping & Forming · Filter Fabrication & Assembly

Where Soymilk Maker & Blender Filter Cup Is Used

  • Soymilk-maker OEMs: filter cups around the motor-head blade.
  • Blender accessory brands: nut-milk filter frames for high-speed blenders.
  • Plant-based food startups: pilot-scale oat and almond milk filtration.
  • Replacement parts: spare cups for discontinued machines.

Read the full application guide for Soymilk Maker & Blender Filter Cup →

How to Specify Soymilk Maker & Blender Filter Cup

  • Mount: Specify bayonet or screw mount to the motor head.
  • Micron rating: 100 µm for soy; 74 µm gives smoother nut milks.
  • Volume: Match the jug capacity so the cup sits below the fill line.

Materials

Standard supply is stainless steel 304, stainless steel 316/316L; the material column in the table and the drawing options show the exact grade for each size. Other alloys and finishes can be quoted to your drawing.

Fitting & Care

  • Rinse the cup immediately; dried okara cements into the mesh.
  • Do not run the machine without the cup locked in place.

Common Mistakes

  • Ordering a cup by jug volume alone; the motor head thread differs between models.
  • Using a fine cup for unsoaked beans, which overload the motor.

When Soymilk Maker & Blender Filter Cup Is Not the Right Choice

Not for juicing fruit; the cup is designed for wet-milling soaked legumes and nuts.

Related Mesh Products

Pricing

Soymilk Maker & Blender Filter Cup is made to order as finished parts. Indicative pricing starts from about US$1.60 per piece for a standard size at production quantity; the final price depends on size, material, finish, tooling and order volume. Send your configuration from the drawing above for a quotation.

Frequently Asked Questions

What is Soymilk Maker & Blender Filter Cup used for?

Holding soaked beans or nuts around the grinding blade of a soymilk maker so milk passes and okara stays inside.

What mesh is used in a soymilk maker filter?

Typically 150-mesh stainless (about 100 µm); nut-milk versions use 200-mesh for a smoother milk.

Why is my soymilk gritty?

The filter is torn, not seated, or too coarse. A 200-mesh cup gives a smoother result.

Can I use the filter cup for oat milk?

Yes, but blend briefly — over-blending oats makes them slimy and slows filtration.

What is the specification range of Soymilk Maker & Blender Filter Cup?

The table on this page lists 4 standard specifications for Soymilk Maker & Blender Filter Cup, from 1.0 L to Nut-milk bag frame. Specifications outside the table — custom mesh counts, wire diameters, roll widths and fabricated pieces — can be quoted on request.

How do I request a quotation?

Use the parametric drawing on this page to set the exact configuration (specification, material, treatment) and click "Request this configuration" — a specialist from custommetalfilters.com will respond within one business day.

Related Mesh Products

Closely related constructions in Kitchen & Appliance Filters — compare aperture range, open area and cleanability.

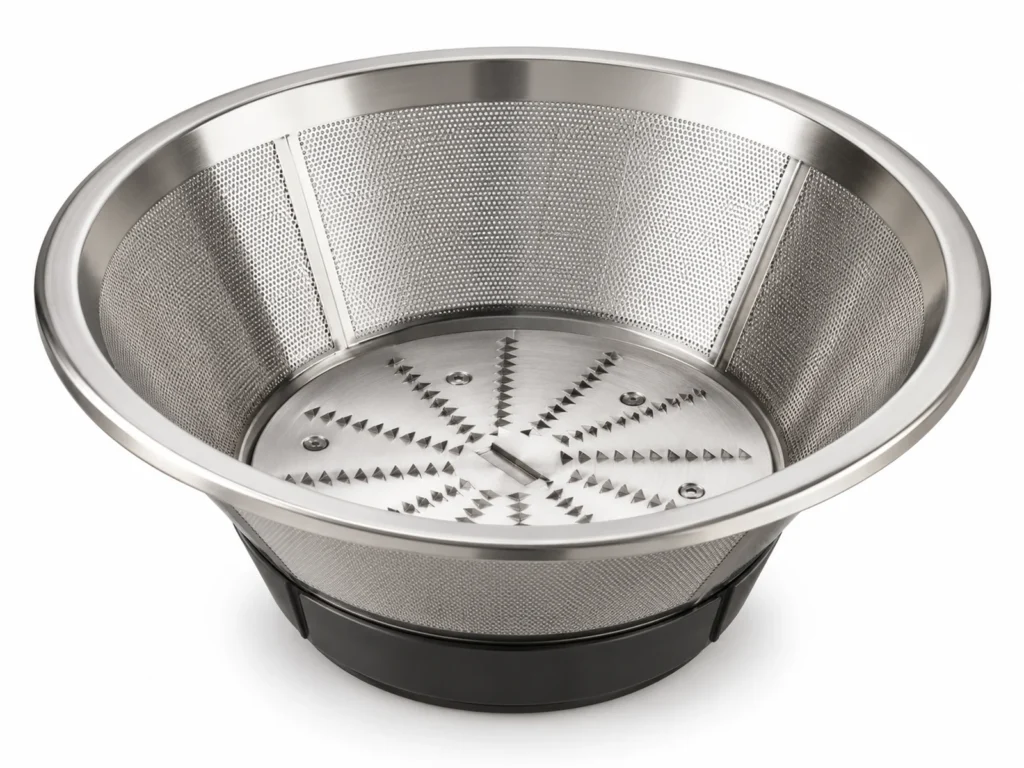

Slow (Masticating) Juicer Strainer ScreenSlow (Masticating) Juicer Strainer ScreenFDA 21 CFR / EU 1935/2004 food contactCentrifugal Juicer Blade Filter BasketCentrifugal Juicer Blade Filter BasketFDA 21 CFR / EU 1935/2004 food contactEspresso Machine Group Head Shower ScreenEspresso Machine Group Head Shower ScreenFDA 21 CFR / EU 1935/2004 food contactCoffee Roaster Drum & Chaff ScreenCoffee Roaster Drum & Chaff ScreenNSF/ANSI 4 equipment
