Five-Heddle Weave Mesh for heavy-duty filtration with five-heddle weave, a thick, very strong woven stainless filter cloth used where filter media must survive repeated high-pressure back-washing. 3 sizes listed, with technical drawing and quotation.
Five-Heddle Weave Mesh (ISO 9044) — Five-Heddle Weave
Technical Drawing
Customize the parameters below — every spec field is editable, and the drawing redraws to match the values you choose. Changing the size will snap the other fields to that size's standard values; you can then override any individual value.
Sends the selected values to the quote form below.
Request a Quotation for Five-Heddle Weave Mesh
Tell us the specification (mesh count / micron / dimensions), material and quantity you need for Five-Heddle Weave Mesh (ISO 9044) and our team will respond within one business day. Click "Request this configuration" on the drawing above to send the parameters you just chose straight into this form.
Dimensions & Specifications (ISO 9044)
Every row below is a starting point for the customizer above — pick any specification row and the drawing will redraw to it.
Mesh (warp x weft)
Warp wire (mm)
Weft wire (mm)
Nominal filtration (u00b5m)
Weight SS (kg/mu00b2)
Reference standard
30x360
0.25
0.16
80
1.15
ISO 9044
40x560
0.18
0.12
60
0.90
ISO 9044
80x720
0.10
0.07
32
0.55
ISO 9044
Five-Heddle Weave Mesh (ISO 9044) is used for heavy-duty filtration with five-heddle weave, a thick, very strong woven stainless filter cloth used where filter media must survive repeated high-pressure back-washing.
Alloy: 316L, duplex or nickel alloys for chemicals.
Materials
Standard supply is stainless steel 304, stainless steel 316/316L, Monel 400, Inconel 600; the material column in the table and the drawing options show the exact grade for each size. Other alloys and finishes can be quoted to your drawing.
Fitting & Care
Install with tension even across width.
Back-wash at controlled pressure.
Common Mistakes
Choosing it for low-pressure fine filtration.
Uneven tensioning.
When Five-Heddle Weave Mesh Is Not the Right Choice
Not economical where standard dutch weave lasts adequately.
Five-Heddle Weave Mesh is stocked and supplied to order in rolls, cut sheets and fabricated pieces. Pricing starts from approximately US$9.00 per unit for standard specifications in stainless steel 304; final pricing depends on specification, alloy, quantity and fabrication (MOQ applies). Submit your exact configuration with the quote form above.
Heavy-duty filtration with five-heddle weave, a thick, very strong woven stainless filter cloth used where filter media must survive repeated high-pressure back-washing.
What is five-heddle weave?
A special filter weave using five heddles for a thick, very strong cloth.
Where is it used?
Centrifuges and pressure filters with harsh back-washing.
Is it stronger than dutch weave?
Yes, it is notably thicker and more robust.
What is the specification range of Five-Heddle Weave Mesh?
The table on this page lists 3 standard specifications for Five-Heddle Weave Mesh, from 30x360 to 80x720. Specifications outside the table — custom mesh counts, wire diameters, roll widths and fabricated pieces — can be quoted on request.
How do I request a quotation?
Use the parametric drawing on this page to set the exact configuration (specification, material, treatment) and click "Request this configuration" — a specialist from custommetalfilters.com will respond within one business day.

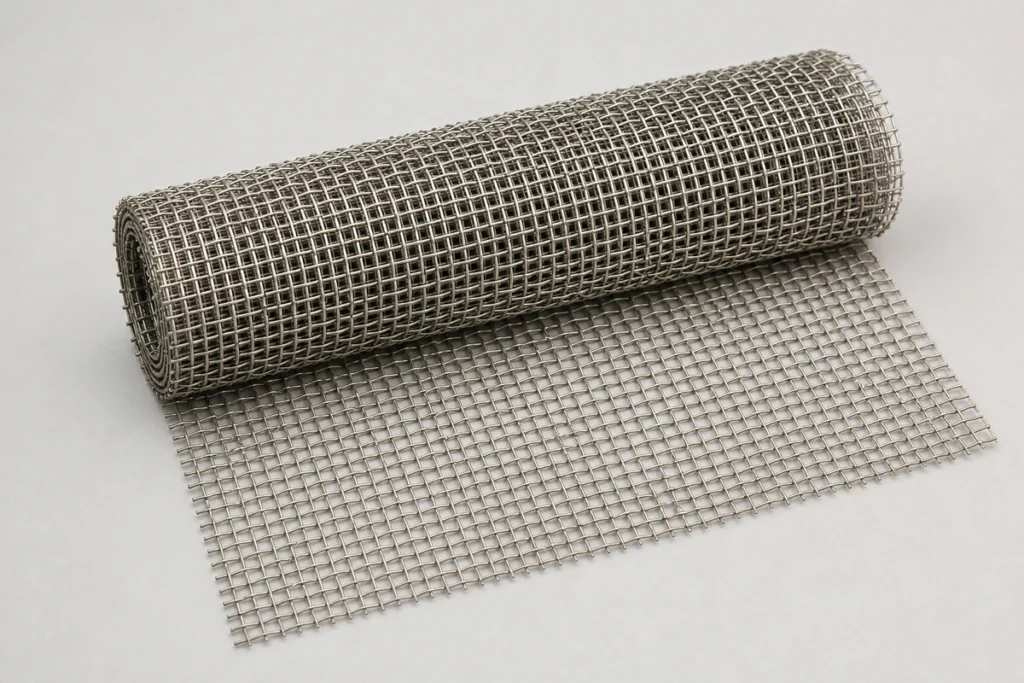

Related Mesh Products
