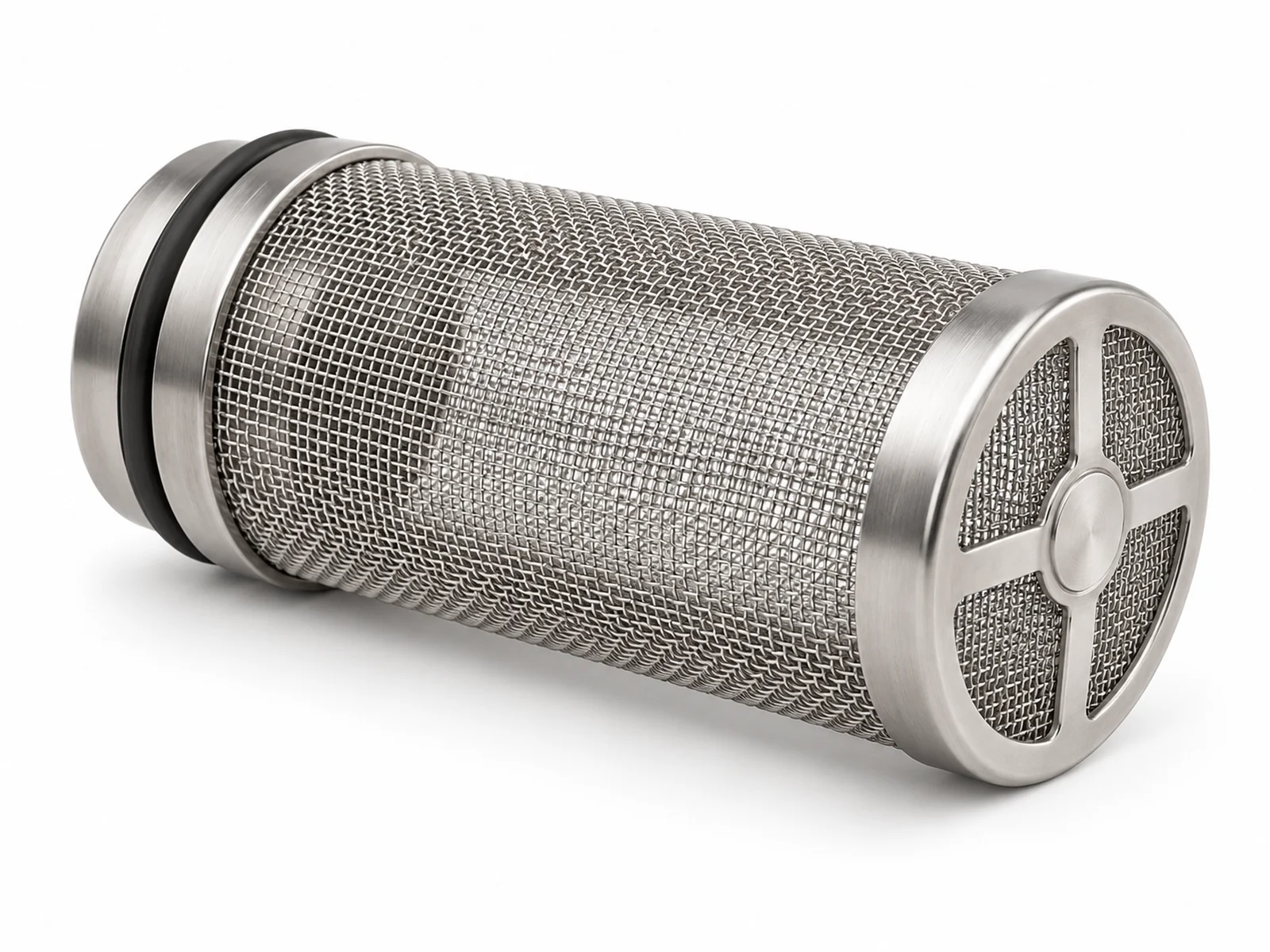

Aquarium Filter Intake Guard for stopping fish, fry, shrimp and debris from being sucked into canister and hang-on filter intakes. 3 sizes listed, with technical drawing and quotation.
Aquarium Filter Intake Guard (Aquarium hose sizes) — Pool, Pet & Aquarium Screens
Technical Drawing
Customize the parameters below — every spec field is editable, and the drawing redraws to match the values you choose. Changing the size will snap the other fields to that size's standard values; you can then override any individual value.
Sends the selected values to the quote form below.
Request a Quotation for Aquarium Filter Intake Guard
Tell us the specification (mesh count / micron / dimensions), material and quantity you need for Aquarium Filter Intake Guard (Aquarium hose sizes) and our team will respond within one business day. Click "Request this configuration" on the drawing above to send the parameters you just chose straight into this form.
Dimensions & Specifications (Aquarium hose sizes)
Every row below is a starting point for the customizer above — pick any specification row and the drawing will redraw to it.
Size
Outer diameter (mm)
Length (mm)
Mesh
Aperture (mm)
u00d8 12 shrimp
16
50
60-Mesh SS316
0.233
u00d8 16
20
60
40-Mesh SS316
0.385
u00d8 22
27
80
30-Mesh SS316
0.547
Aquarium Filter Intake Guard (Aquarium hose sizes) is used for stopping fish, fry, shrimp and debris from being sucked into canister and hang-on filter intakes.
Standard supply is stainless steel 316/316L; the material column in the table and the drawing options show the exact grade for each size. Other alloys and finishes can be quoted to your drawing.
Fitting & Care
Brush the guard monthly to keep flow up.
Secure it so it cannot slip off the intake.
Common Mistakes
A guard too coarse for fry and shrimp.
Letting it clog, which reduces filter flow.
When Aquarium Filter Intake Guard Is Not the Right Choice
Not a replacement for sponge or floss mechanical filtration.
Aquarium Filter Intake Guard is made to order as finished parts. Indicative pricing starts from about US$0.70 per piece for a standard size at production quantity; the final price depends on size, material, finish, tooling and order volume. Send your configuration from the drawing above for a quotation.
Stopping fish, fry, shrimp and debris from being sucked into canister and hang-on filter intakes.
Is a stainless intake guard shrimp-safe?
Yes, with 60-mesh openings.
Will a stainless intake guard rust in saltwater?
SS316 resists corrosion.
How do I clean an intake guard?
Brush it under running water.
Which specifications of Aquarium Filter Intake Guard does custommetalfilters.com supply?
The table on this page lists 3 standard specifications for Aquarium Filter Intake Guard, from u00d8 12 shrimp to u00d8 22. Specifications outside the table — custom mesh counts, wire diameters, roll widths and fabricated pieces — can be quoted on request.
How do I request a quotation?
Use the parametric drawing on this page to set the exact configuration (specification, material, treatment) and click "Request this configuration" — a specialist from custommetalfilters.com will respond within one business day.
